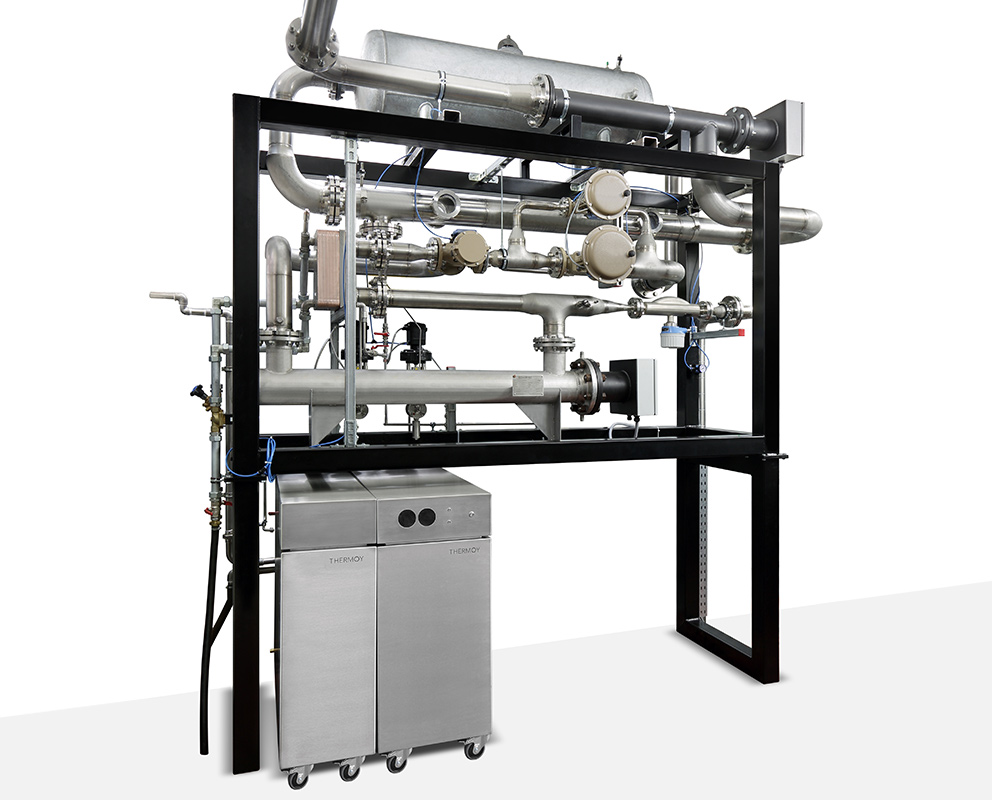

Charge air conditioning
Supply of charged combustion motors with charge air under reproducible physical conditions
Basics for an optimal, functional, and economical solution:
Control of the pressure, temperature, and humidity at the outlet
Analogue nominal value presetting, alternatively via the hybride interface of the superordinate test stand computer or via a separate touch panel of the control
Profi bus or ethernet interface
Technical features
Temperature control: 20…100°C ±1K
Charging air volume up to bis 1250 kg/h
Control of the humidity: 0…27 g/kg air ± 0,5 g/kg air
Pressure control: 1…9 bar (Ü) ± 5 mbar
