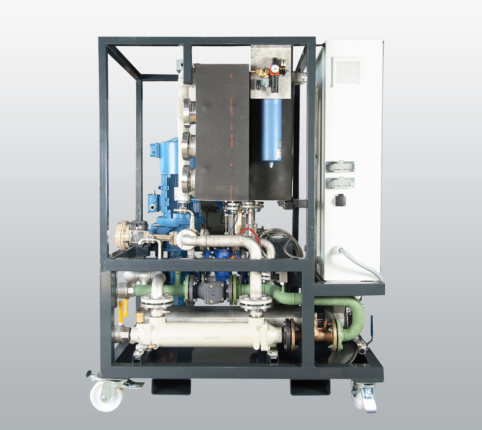

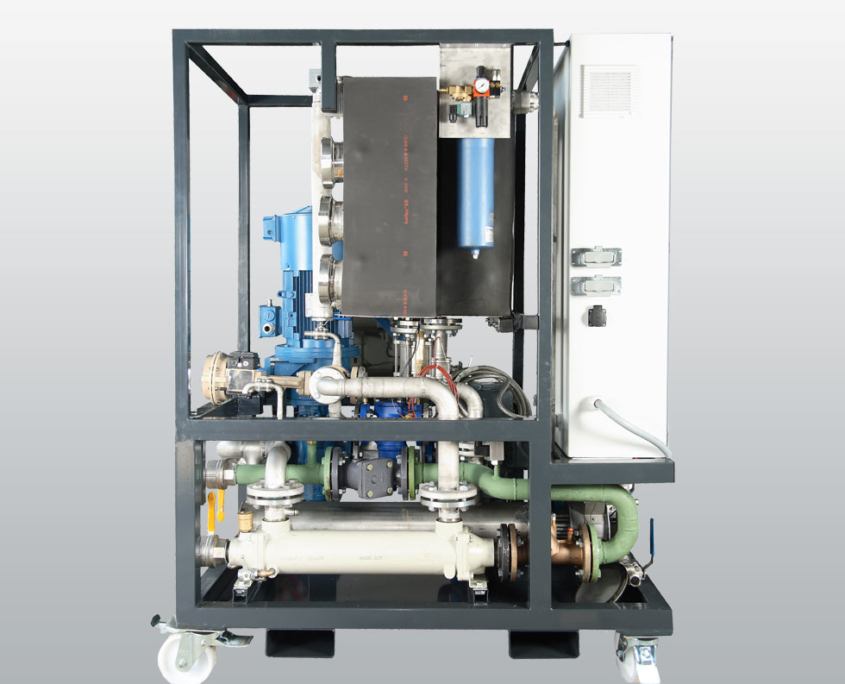

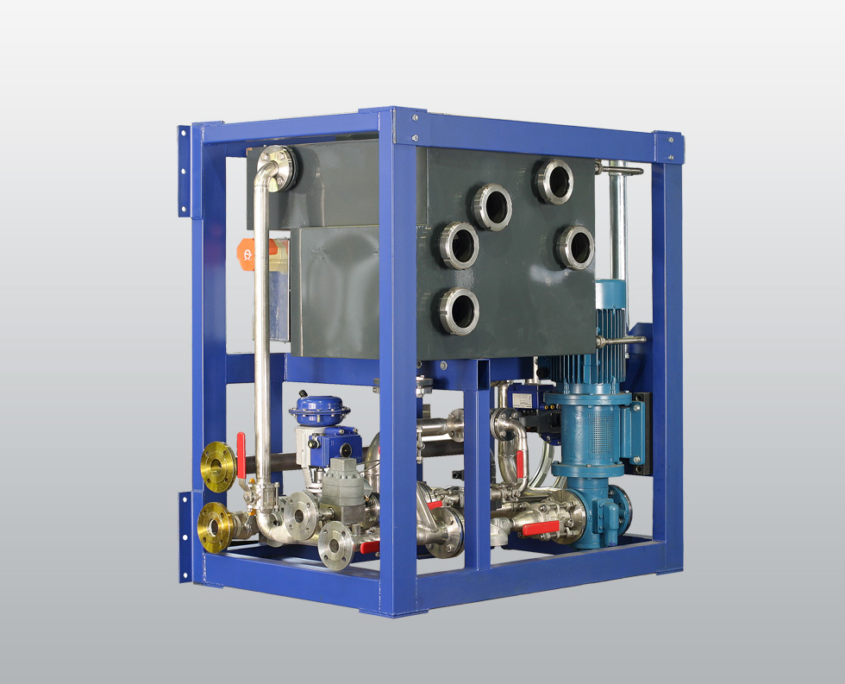

Oil conditioning
Supply of combustion motors with lubricating oil under real physical conditions
Temperature control and pressure application for motors or motor components without integrated oil pump.
Product description
Preparation and cleaning by means of special filtering and defoaming procedures
Exact control of the pressure and temperature
Temperature control of motors with dry sump lubrication
Vacuum-controlled extraction of the oil foam
Either pressure control or exact volume flow control is possible
Analogue nominal value presetting, alternatively via the hybride interface of the superordinate test stand computer or via a separate touch panel of the control
Profi bus or ethernet interface
Combined filling and emptying system with defoaming container
Level monitoring and overfill protection
Integrated leakage with monitoring
Leakage collecting pan with monitoring
Technical features
Temperature control: 30 to 150°C ± 0,5K
Volume flow: 20 to 90 l/min
Pressure control: 10 to 12 bar(rel.)
