Technical Center Curitiba Brasil
Basic- and detail engineering for a test bench building

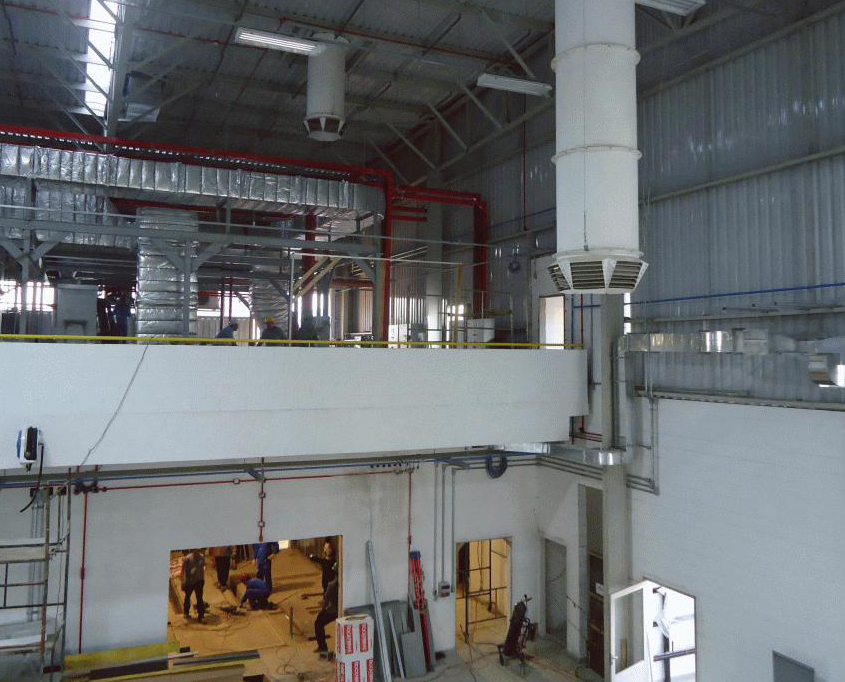

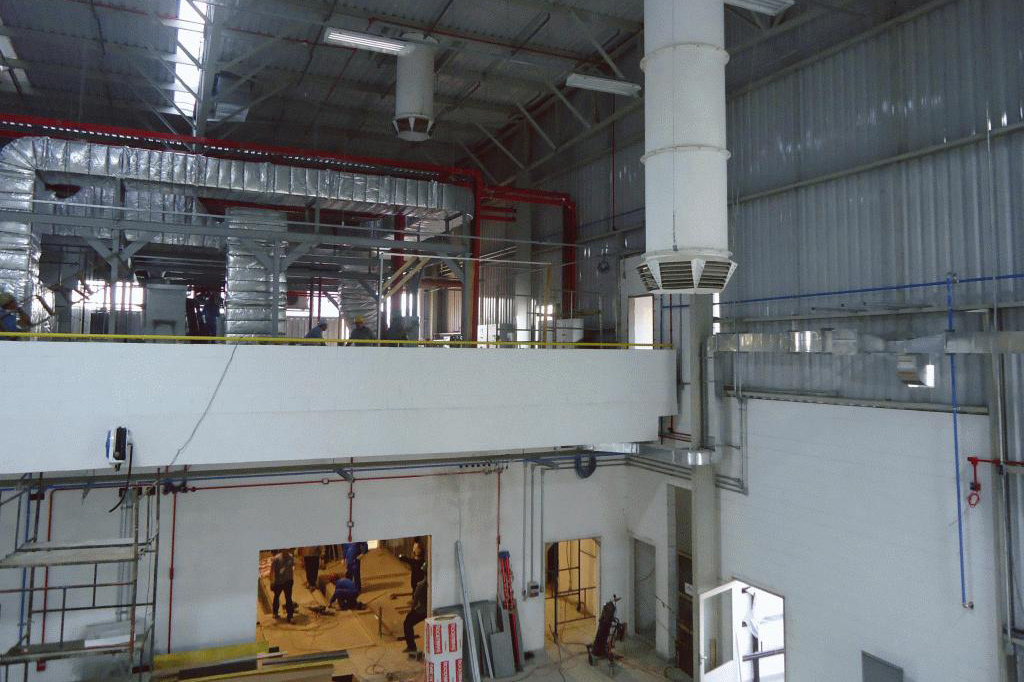

The new research activities within DS/EVL-LA in Curitiba made the currently available resources/facilities inadequate. Two engine test benches with the belonging infrastructures were installed in the new building Ct215.
Infrastructure and integrated facilities
2pcs of engine test bench
Analysis technique for exhaust gas
Engine handling area to transport engines on hoover craft systems
Room for measuring equipment and operators for each test stand
Engine preparation area
Office and operating room areas
Fuel supply systems
Calibration and operating gas supply system
CNG supply systems
Automation systems
Technical features
Engine power: 440 kW per test cell
Temperature range in test cell: max. +30°C
Cooling water: 2 independent systems
Combustion air: 2 independent systems 2100 m³/h with temperature- (+/- 1K) and humidity control (+/- 5% rel.H)
Charge Air cooling: 110 kW per test cell
EGR cooling: 55 kW per test cell
