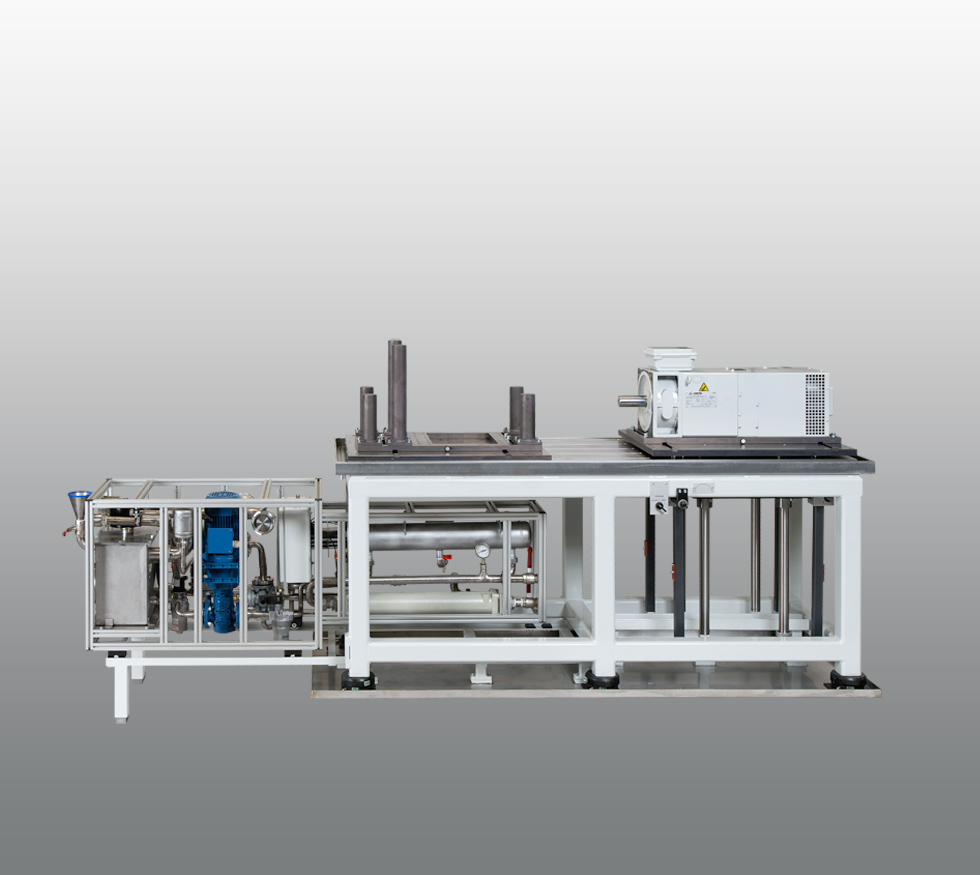

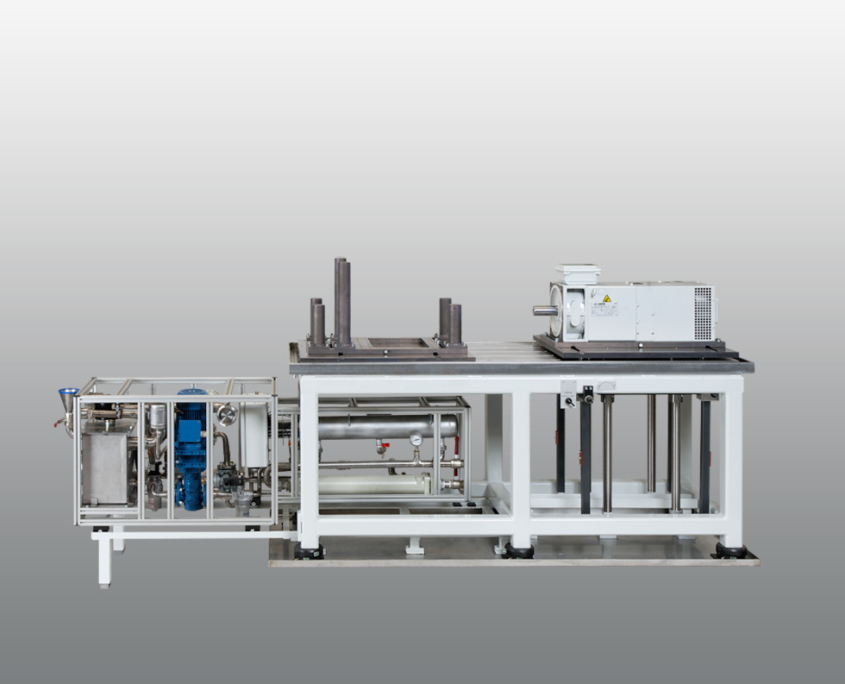

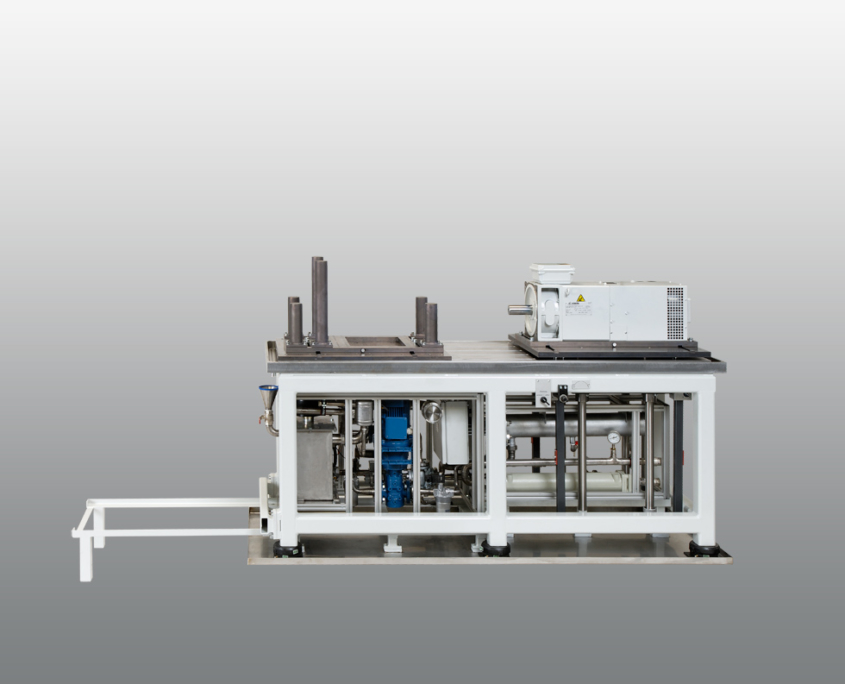

Complete with drive engine, oil conditioning with defoaming container, modern coupling system
Due to its unique compactness this unit test stand is very versatile and can be used in many applications to drive cylinder heads, single cylinder motors, or small complete engines.
Implementation
Drive engine adjustable in height
Table with anti-vibration bearings – stable and torsion-resistant
Variable mounting plate for the equipment under test – slidable in X and Y direction
Integrated oil conditioning with defoaming container
Technical features - drive engine
For speed up to 8.000 1/min
100 Nm torque at 4.000 1/min
Control accuracy at 4000 1/min = 2 1/min
Technical features - oil conditioning
Temperature control ± 1K
Volume flow control or pressure control – switchable
Adjustable volume flow: 2 to 30 l/min
Adjustable pressure: 0.8 to 15 bar
Adjustable temperature: 40 to 150°C
